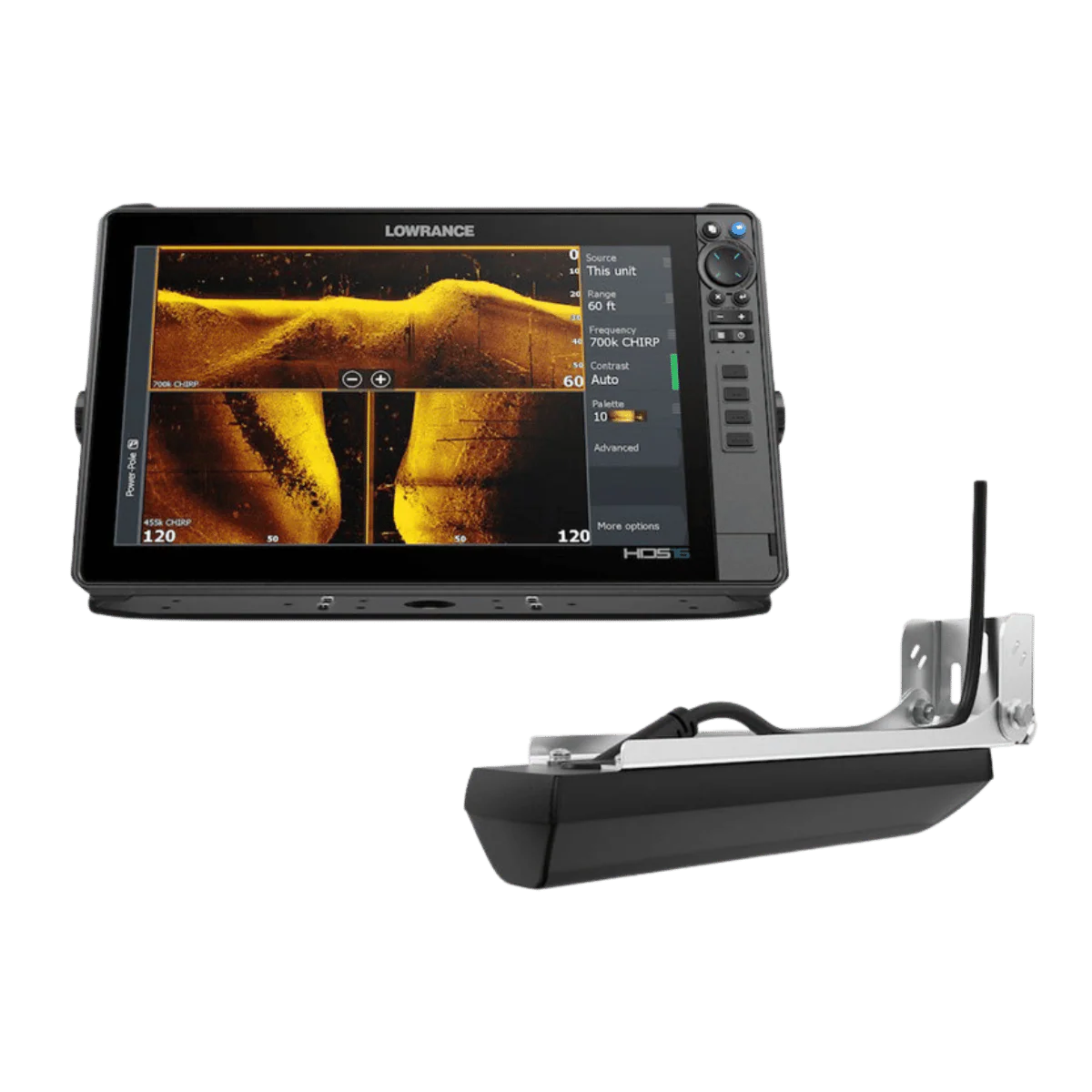

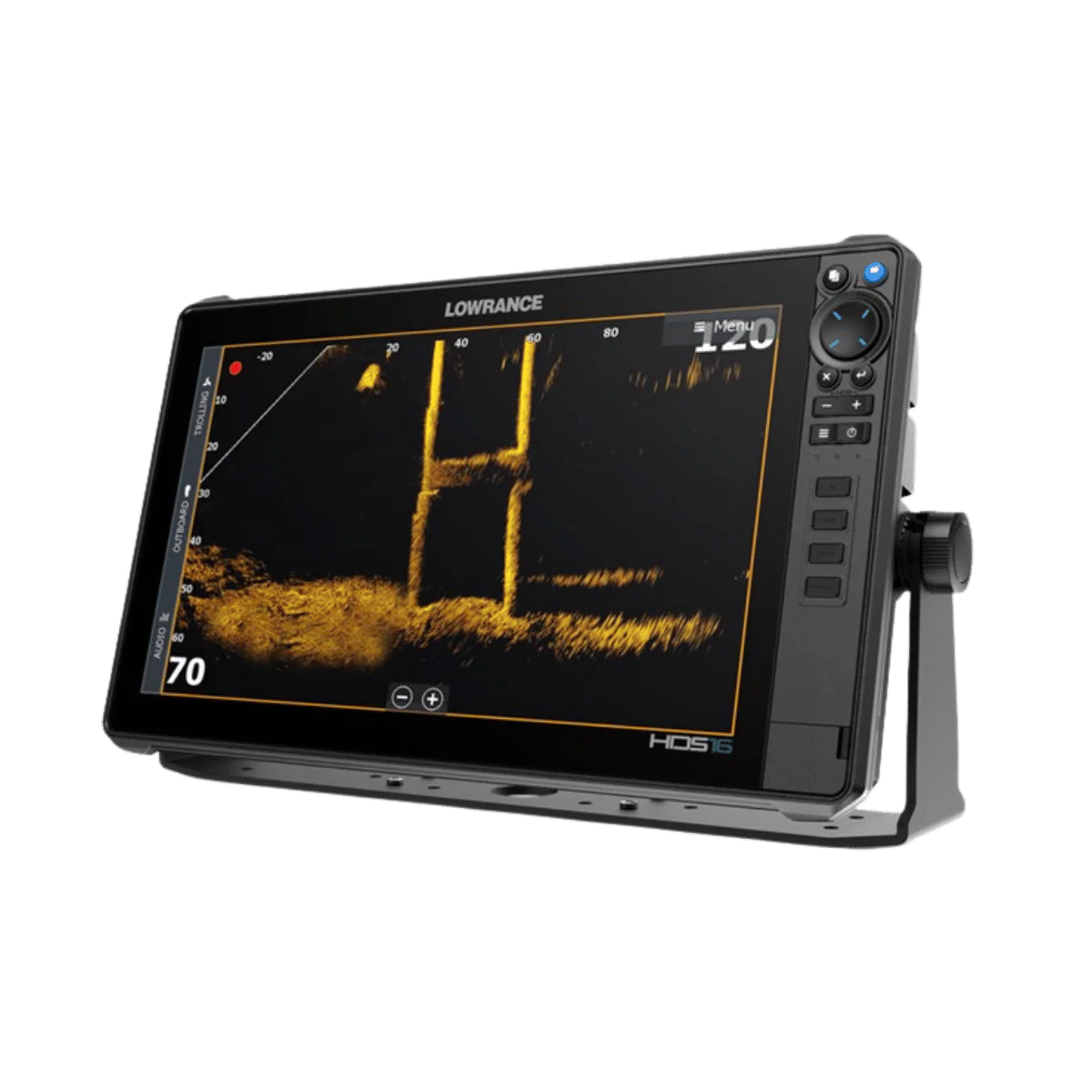

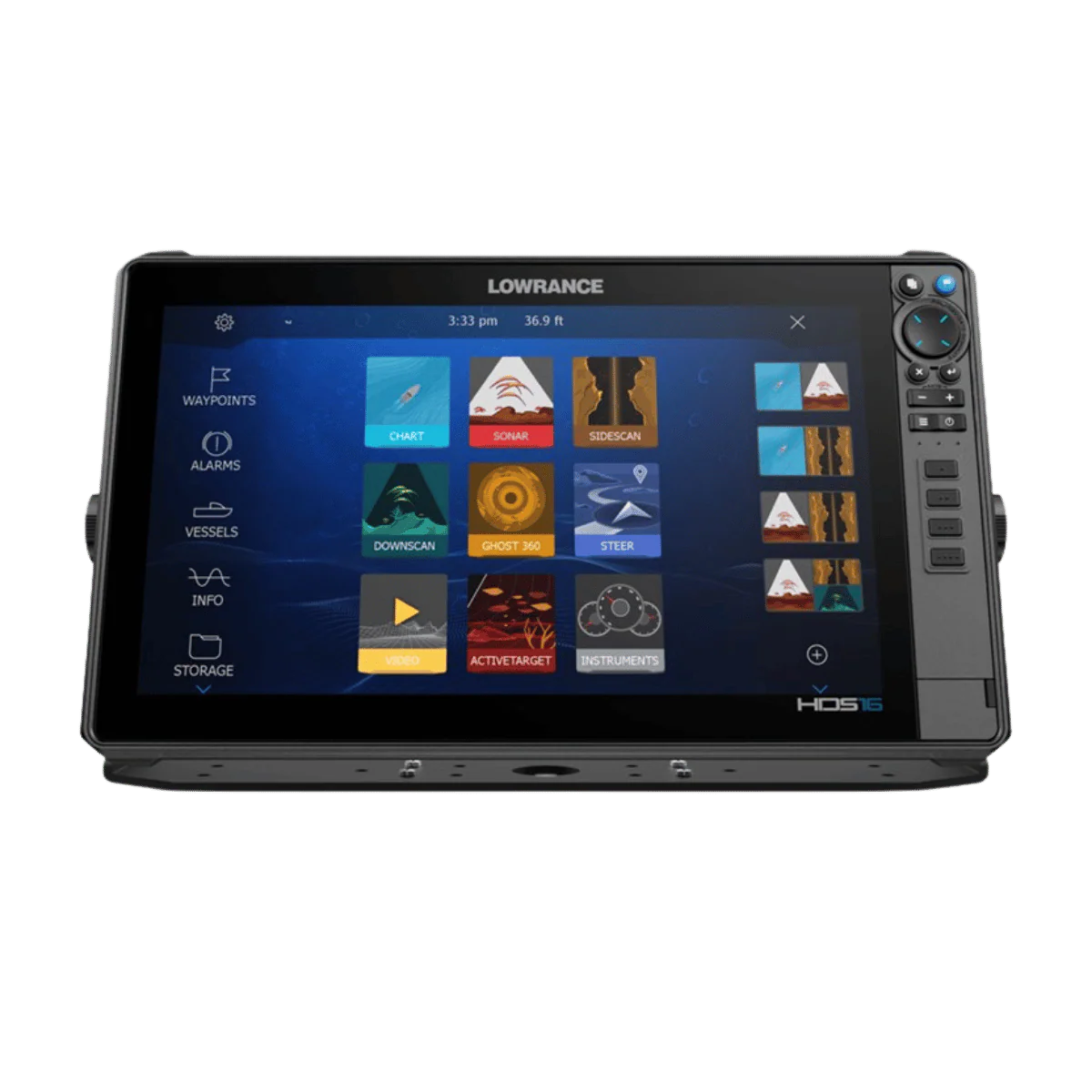

LOWRANCE HDS PRO 16 US/CAN MULTIFUNCTION DISPLAY WITH C-MAP DISCOVER

The HDS16 Pro is Lowrance’s most powerful and feature-rich fishfinder/chartplotter, designed for serious anglers who want top performance, clarity, and control.

Key Features:

• 16" SolarMAX™ HD touchscreen – bright, responsive, and easy to view from any angle, even through polarized sunglasses.

• Includes ActiveImaging™ HD 3-in-1 transducer, delivering ultra-high-definition CHIRP sonar, SideScan, and DownScan Imaging™.

• Fully compatible with the new ActiveTarget® 2 Live Sonar, including dual system support for simultaneous views.

• Enhanced FishReveal™, now available on SideScan and DownScan (with optional S3100 module), helps you identify fish faster and easier.

• C-MAP® Discover charts preloaded – includes 1-foot contours for 19,000+ U.S. lakes and 9,400+ Canadian lakes.

• Real-time mapping with Genesis Live.

• Overlay ActiveTarget® Scout or Ghost® 360 views directly onto your charts for advanced targeting.

• Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, and autopilot systems.

• Full connectivity: NMEA 2000®, Wi-Fi, Bluetooth® 5.2, and smartphone integration.

• Supports third-party charts like Navionics®, C-MAP Reveal, and more.

• Programmable keys, user-friendly interface, and advanced networking for up to 6 displays.

Specifications Overview:

• Resolution: 1920x1080 Full HD

• Power Supply: 12V DC (10.8–17V); Typical draw: 3.0A

• Mounting: Panel or bracket

• Waterproof Rating: IPX7

• Internal Storage: 8GB; SD card support via power cable

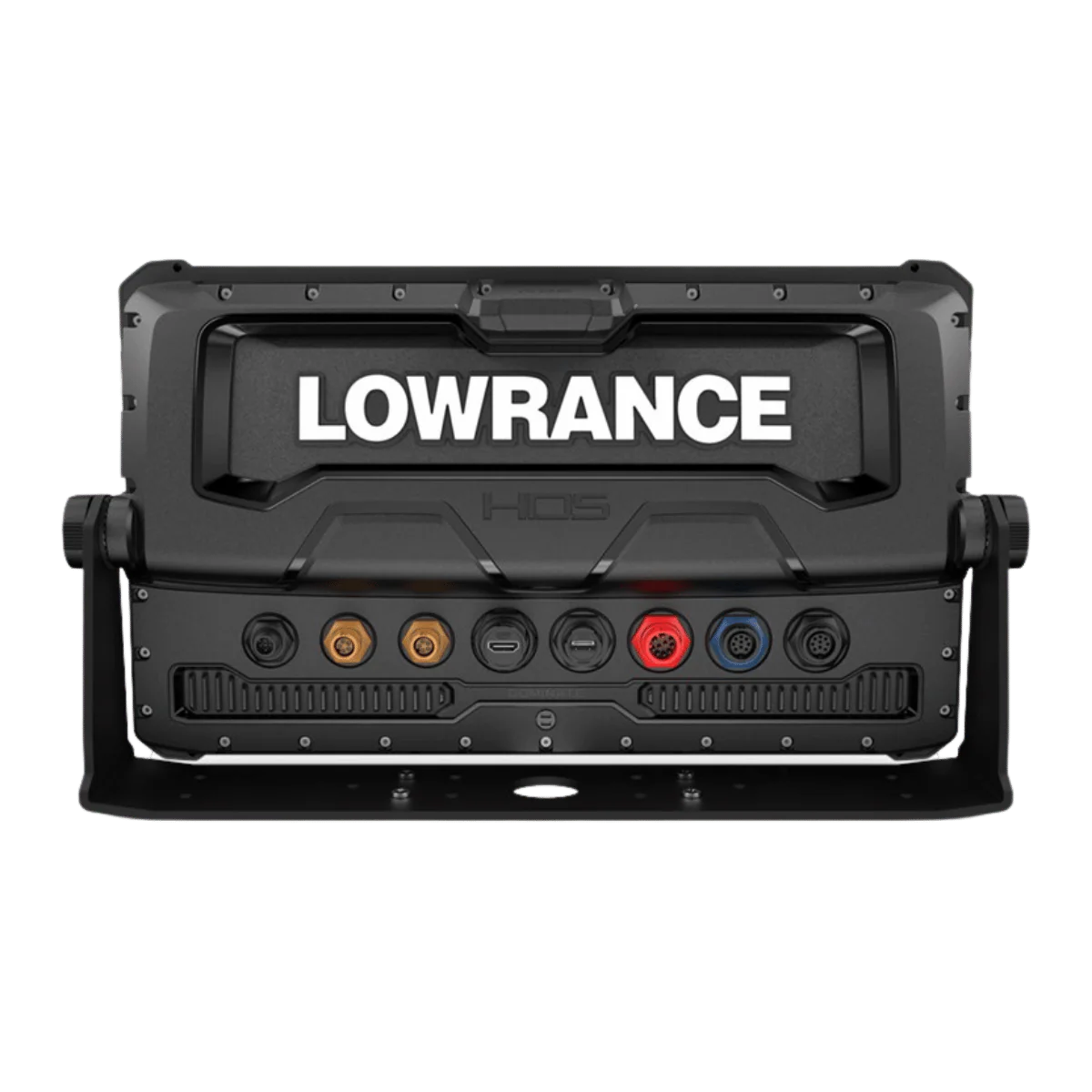

• Connectivity: 2 Ethernet ports, NMEA 2000, Wi-Fi, Bluetooth

• Sonar Output: Up to 1kW

• Waypoints/Routes/Trails: 3000/100/100 (up to 10,000 points per trail)

• Dimensions: 16.95” W x 10.20” H x 3.46” D

• Weight: 7.94 lbs

What’s in the Box:

• HDS16 Pro Display (with C-MAP Discover USA & Canada)

• ActiveImaging™ HD 3-in-1 Transducer

• Power/0183 Cable

• Mounting Bracket & Knobs

• Suncover
